4-Color 45pcs/Min CNC Automatic Screen Printing Machine For Tube And Bottle
Productdetails:
| Plaats van herkomst: | Dongguan China |
| Merknaam: | SENNY |
| Certificering: | CE SGS |
| Modelnummer: | SRS1249 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 stc |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | Multiplexpakket |
| Levertijd: | 45 dagen |
| Betalingscondities: | T/t |
| Levering vermogen: | 10 pc's/maand |
|
Gedetailleerde informatie |
|||
| Auto -cijfer: | Volledig automatisch | Bordype: | Schermprinter |
|---|---|---|---|
| After-sales services: | Video of online | Gedrukte kleur: | 4 |
| Bescheiden: | Voordelen: het kan in vier kleuren afdrukken en producten accommoderen met verschillende vormen, zoa | ||
| Markeren: | 4-color automatic screen printing machine,CNC screen printing machine for tubes,45pcs/min bottle screen printing machine |
||
Productomschrijving

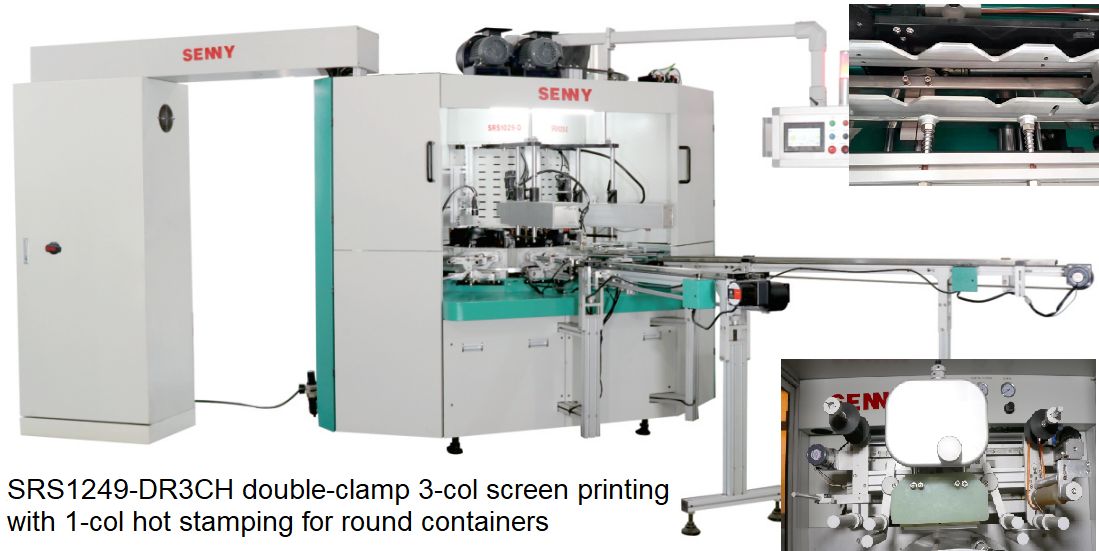

Machine Feature
- This machine is capable of performing screen-printing with multi-color UV inks, hot stamping, and other decorative processes on a variety of products. These include bottles, jars, caps, and items with irregular shapes, which can be made from materials such as plastic, metal, glass, and more.
- With an integrated turntable design, the machine accomplishes all printing tasks using the same set of fixtures. It boasts an impressive printing accuracy of up to ±0.1mm and ensures that products remain free from scratches during the process.
- Powered by a digitally controlled servo motor, the machine allows for 360-degree printing on products. In line with Industry 4.0 standards, it is also equipped with remote management and service functionalities.
Optional Configuration
- A function for loading and unloading products in a horizontal position.
- A function for examining the quality of finished products.
- A function for visual alignment of bottle bodies.
- An LED-UV curing system.
- A plasma surface treatment function.
- A function for visual alignment of bottle bottoms.
Technical Parameters
| Machine Model | SRS1249 |
| Printing Color | 4 |
| printing Speed | Up to 45 pcs/min |
| Diameter at 360 Degree | 13-600mm |
| Container Height | 20-200mm |
| Max.Printing Length | 200mm |
| Max.Printing Height | 160mm |
