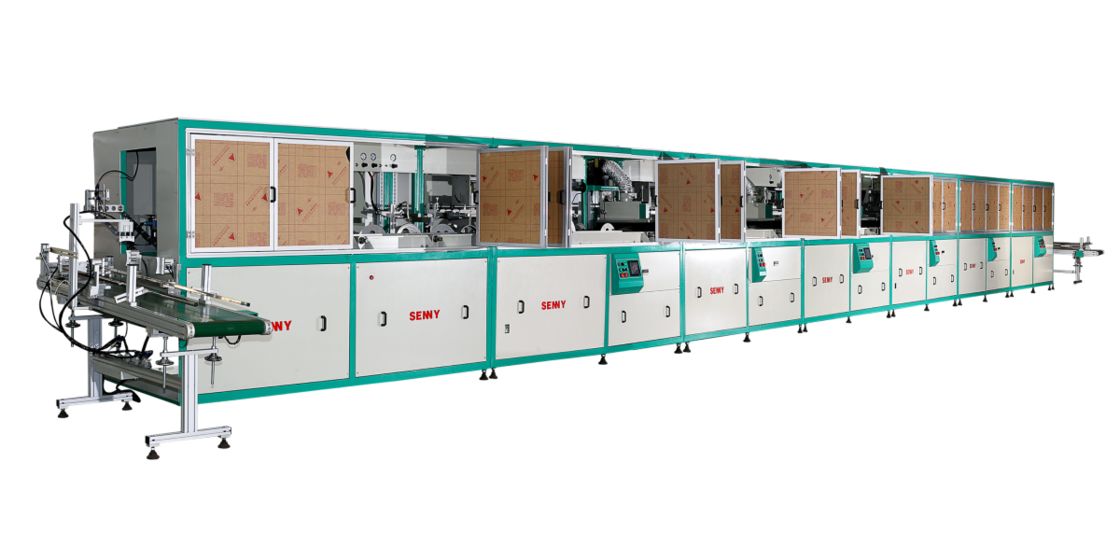

1-8 Color 30 Pcs/Min Plastic Bucket UV Screen Printing Machine
Productdetails:
| Plaats van herkomst: | Dongguan China |
| Merknaam: | SENNY |
| Certificering: | CE SGS |
| Modelnummer: | SL2888 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 stc |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | Multiplexpakket |
| Levertijd: | 45 dagen |
| Betalingscondities: | T/t of l/c |
| Levering vermogen: | 10 pc's/maand |
|
Gedetailleerde informatie |
|||
| After-sales services: | Video of online | Bordype: | Schermprinter |
|---|---|---|---|
| Afdrukken: | 1-8 | Emmercapaciteit: | 7-25L |
Productomschrijving
Machine Features

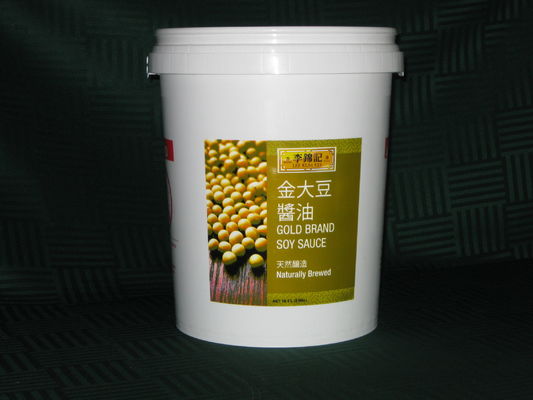

- This machine is ideally designed for UV ink screen printing—accommodating multiple color options— plastic round buckets. It guarantees not only high precision in print alignment but also vivid, long-lasting color reproduction.
- Featuring electrical components sourced from well-known, industry-leading brands, the machine is integrated with an intuitive touchscreen interface and a PLC (Programmable Logic Controller) control system. This combination ensures consistent, reliable performance during extended production cycles.
- Its modular structure offers exceptional customizability: by connecting modules in a linear arrangement, the machine can be configured as a 1- to 8-color printing system. This flexibility allows it to seamlessly adapt to a wide range of production requirements, from small-batch to high-volume runs.
Optional Configuration
- Plasma Surface Treatment (standard configuration is flame surface treatment)This advanced plasma surface treatment option enhances substrate adhesion for inks, outperforming the standard flame treatment with more uniform surface activation—ideal for sensitive plastic materials.
- LED-UV Curing (standard configuration is UV lamp curing) LED-UV curing delivers faster, energy-efficient ink drying compared to the standard UV lamp setup, while also reducing heat output to protect heat-sensitive bucket surfaces.
-
Storage Conveyor Belt
The integrated storage conveyor belt provides temporary, organized holding for printed buckets, preventing bottlenecks between printing and curing stages to keep production flowing smoothly.
-
Quality Inspection Machine
This dedicated quality inspection machine automatically checks for print defects (e.g., smudges, misalignment) post-curing, ensuring only buckets meeting quality standards move to the next process.
Technical Parameters
|
Machine Model
|
SL2888 |
|
Printing Speed
|
Up to 30pcs/min
|
|
Round Bucket Diameter
|
100-250mm
|
|
Round Bucket Height
|
100-550mm |
| Printing area | L600mm*H250mm |
printing your vision
About us:
Dongguan Senny Printing Equipment Co., Ltd. has been steadily growing since its establishment in 2004. The company has successfully expanded its market share both at home and abroad, with its products being sold worldwide and highly praised by customers. It serves a diverse range of industries, from food and pharmaceuticals to electronics and cosmetics, which reflects its wide market reach.
.
