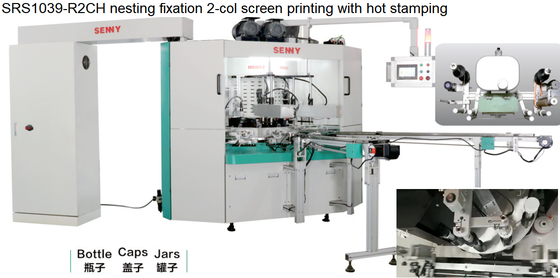

360-Degree Product Printing With Digitally Controlled Servo Motors On CNC Tube Screen Printing Machine
Productdetails:
| Plaats van herkomst: | CHINA |
| Merknaam: | Senny |
| Certificering: | CE SGS |
| Modelnummer: | SRS1039-2C1H |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 stc |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | Filmverpakking |
| Levertijd: | een maand |
| Betalingscondities: | T/t, l/c |
| Levering vermogen: | 15 stks/maand |
|
Gedetailleerde informatie |
|||
| Automatisch cijfer: | Volledig automatisch | Voorwaarde: | NIEUW |
|---|---|---|---|
| Duurzaamheid afdrukken: | Hoge duurzaamheid | Besturingssysteem: | Servomotorische controle |
| Afdruksnelheid: | 80 stuks per uur | Gedrukte kleuren: | 1-6 kleuren |
| Pakketgegevens: | Multiplexpakket | Garantie: | 1 jaar |
| Certificering: | CE SGS | Betalingscondities: | T/t |
| After-sales service: | Video of online | Levering vermogen: | 5 stks/maand |
| Markeren: | 360-degree CNC tube screen printing machine,digitally controlled servo motor screen printer,CNC tube printing machine with warranty |
||
Productomschrijving
360-Degree Product Printing With Digitally Controlled Servo Motors On CNC Tube Screen Printing Machine
Introduction:
Senny offers a rich portfolio of printing models tailored to plastic soft tube processing, leveraging advanced automatic printing technologies—including varnishing, screen printing, and hot stamping—to deliver vivid, high-precision graphics and multi-color text. Whether for brand logos, product information, or decorative patterns, these technologies ensure sharp details, consistent color rendering, and excellent adhesion to plastic surfaces, elevating the visual appeal and market competitiveness of the finished tubes.
Machine Features:
- The machine is suitable for screen printing various colors of UV inks, hot stamping, varnishing and other decorations on plastic tubes.
- The machine has an integrated carousel design with all printing functions on the same set of fixtures and printing accuracy of ±0.1 mm.
- The machine is driven by digitally controlled servo motors for 360-degree product printing and is equipped with remote management and service functions (Industry 4.0).
- The machine adopts well-known brand electrical components, PLC control system, touch screen and wireless tablet operation is easy to use and reliable performance.
Optional Configuration:
-
Unscrambling & feeding machine.
-
Plasma surface treatment function.
-
Varnishing function.
-
Hot stamping function.
-
LED-UV curing function.
-
Finished product quality inspection function.
Parameters
| Machine Model | SRS826 | SRS1036 | SRS1246 | SRS1666 |
| Work Station | 8 | 10 | 12 | 16 |
| Printing Speed | Up to 80pcs/hour | Up to 80pcs/hour | Up to 80pcs/hour | Up to 80pcs/hour |
| Tube Diameter | 16–75mm | 16-75mm | 16-75mm | 16-75mm |
| Tube Height | 60–220mm | 60–220mm | 60–220mm | 60–220mm |
| Printing Length | 220mm | 220mm | 220mm | 220mm |
| Printing Height | 180mm | 180mm | 180mm | 180mm |
| Printing Accuracy | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
Applications:
The SRS1039-2C1H Automatic UV Screen Printing Machine is a fully automatic UV screen printing machine. Its printing scope covers common container workpieces, and it can be used for UV screen printing of various cylindrical or irregular container bodies such as bottles, lids, and cans.

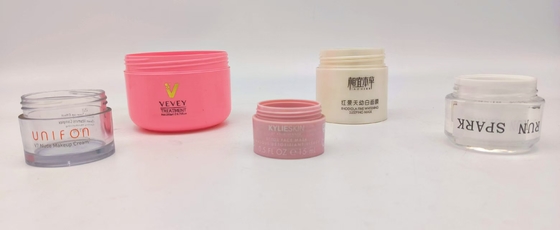

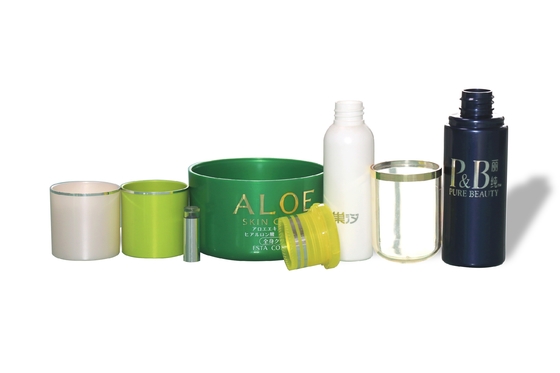

Printing sample
