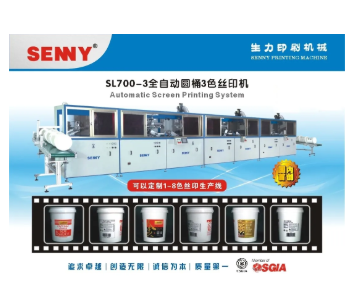

380V 20kw 3 Color Screen Printing Machine Fully Automatic
Productdetails:
| Plaats van herkomst: | Dongguan China |
| Merknaam: | SENNY |
| Certificering: | CE SGS |
| Modelnummer: | SL700 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 ST |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | multiplex pakket |
| Levertijd: | een maand |
| Betalingscondities: | TT of LC |
| Levering vermogen: | 10 stks/maand |
|
Gedetailleerde informatie |
Productomschrijving
1-3 Color Fully Automatic Screen Printing Machine With Independent PLC Program And Touch Panel Control System
Technical Specifications:
| Model | SL700 |
| Cylindrical container diameter | Φ150-Φ350mm |
| Cylindrical container height | 200-400mm |
| Power voltage | 380V 50Hz |
| Air Pressure | 5-7kg/cm2 |
| Max. screen frame size | 1200 X 400mm |
| Power consumption | 20KW |
| Machine weight | 2500kg |
| Max. printing speed | 5000pcs/hr |
| Dimension | L12000XW2500XH1800mm |
Application:
This printing system SL700-3 is for rounded(cylindrical) plastic buckets only, the volume can be 5-30L; it is widely used in chemical and food package. We can accept customized machine according to your requirements, the max color can be 12.
Features:
1. Auto-speed adjustable conveyor and direction-fixation system.
2. Auto continuous flame treatment system.
3. Pre-fixation function for cylindrical bottles and double direction shut-and-open printing system can monitor no printing without object function.
4. The device for changing cylindrical bottles from elliptical bottles.
5. Curing system with Americal UV lamp.
6. 2 meters check-convoy for the finished objects.
7. Independent PLC program control system and touch panel control system.
8. The machine works steady because using name-brand electric parts.
Screen printing device
Blanking device
Printing samples
