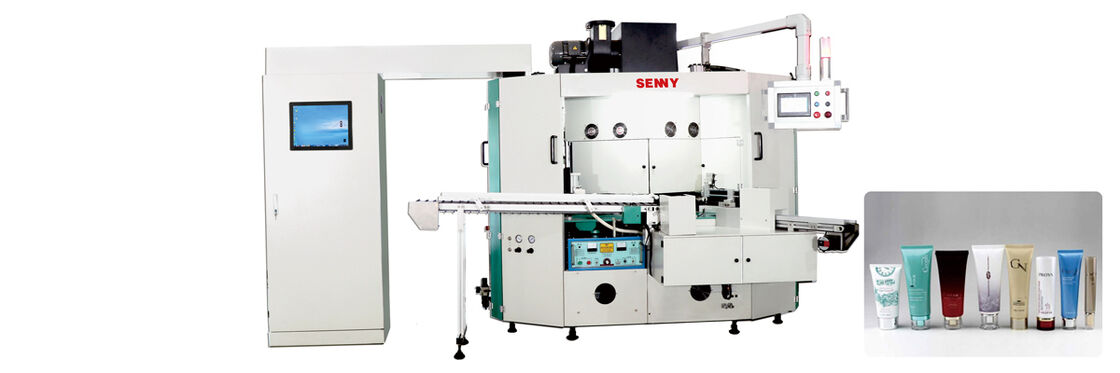

1-8 Color Soft Tube Automatic UV Printing Machine Up to 80pcs/min With Varnishing
Productdetails:
| Plaats van herkomst: | Dongguan Guangdong China |
| Merknaam: | SENNY |
| Certificering: | CE SGS |
| Modelnummer: | SRS666 |
Betalen & Verzenden Algemene voorwaarden:
| Min. bestelaantal: | 1 st |
|---|---|
| Prijs: | negotiable |
| Verpakking Details: | multiplex pakket |
| Levertijd: | een maand |
| Betalingscondities: | T/T |
| Levering vermogen: | 10 stks /maand |
|
Gedetailleerde informatie |
|||
| type: | de machine van de serigrafiedruk | Controletype: | Servomotorische controle |
|---|---|---|---|
| Gebruik: | Buizen, potten, doppen | Inkttype: | UV-inkt |
| Luchtdruk: | 6-7 bar | Afdruksnelheid: | 85 stuks per minuut |
| Auto -cijfer: | volledig automatisch | ||
Productomschrijving
Machine Features
The machine is suitable for screen printing of various colors of UV ink, hot stamping, varnishing and other decorations onplastic soft tubes
The machine adopts an integrated turntable design, all printing functions are completed in the same set of fixture, the printingaccuracy is as high as +0.1mm.
The machine is driven by digital control servo motor to realize 360-degree printing of products, equipped with remotemanagement and service functions (Industry 4.0).
The machine adopts well-known brand electrical components, PLC control system, easy-to-use touch screen and wirelesstablet operation, with reliable performance.
Optional Configuration
Unscrambling & feeding machine.
Hot stamping function.
Plasma surface treatment function.
Visual registration function.
LED-UV curing function.
Finished product quality inspection function.
Technical Parameters
MachineModel SRS466 SRS666 SRS866
Printing Color 1-4 1-6 1-8
Printing Speed Up to 80pcs/min Up to 80pcs/min Up to 80pcs/min
Soft Tube Diameter 13-80mm 13-80mm 13-80mm
Soft Tube Height 25-250mm 25-250mm 25-250mm
Max Printing Length 250mm 250mm 250mm
Max Printing Height 220mm 220mm 220mm

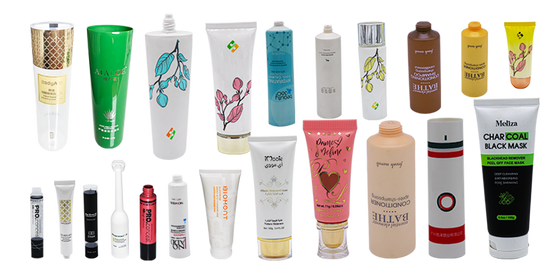

Printing Sample
